Network Security for Mac OS X

This section explains the firewall configuration for Mac OS X 10.4 Tiger.

Firewall Configuration

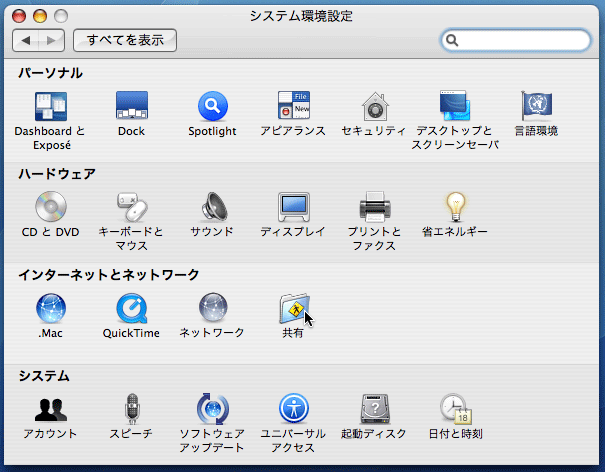

1. Open the "System Preferences" window.



2. Click "Sharing" under "Internet & Network".



3. Click "Firewall" and then click "Start".

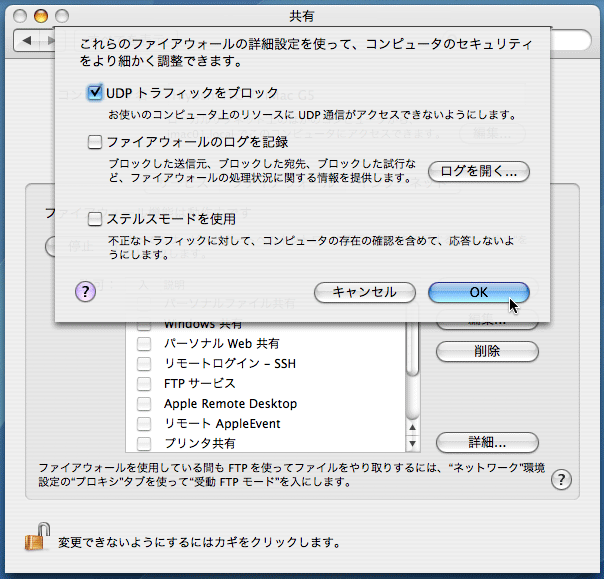

4. The above procedure only blocks TCP traffic. To block UDP traffic, you must click "Advanced" for further setup.



The Firewall is setup to enable the use of major clients, even with the UDP traffic blocked.
However, if there is a streaming media which cannot be played, it may be due to the UDP blocking.

To use the services on Mac on which the Firewall will be run, you may need to further setup your computer, such as placing checkmarks into the list of permitted programs.
However, if you are using iBook or PowerBook, you may only need to allow "network time", which is enabled by default.

Specific Firewall Configuration Settings

ipfw list output in blocking TCP traffic

02000 allow ip from any to any via lo*
02010 deny ip from 127.0.0.0/8 to any in
02020 deny ip from any to 127.0.0.0/8 in
02030 deny ip from 224.0.0.0/3 to any in
02040 deny tcp from any to 224.0.0.0/3 in
02050 allow tcp from any to any out
02060 allow tcp from any to any established
12190 deny tcp from any to any
65535 allow ip from any to any

ipfw list output in blocking TCP and UDP traffics

02000 allow ip from any to any via lo*
02010 deny ip from 127.0.0.0/8 to any in
02020 deny ip from any to 127.0.0.0/8 in
02030 deny ip from 224.0.0.0/3 to any in
02040 deny tcp from any to 224.0.0.0/3 in
02050 allow tcp from any to any out
02060 allow tcp from any to any established
12190 deny tcp from any to any
20310 allow udp from any to any dst-port 53 in
20320 allow udp from any to any dst-port 68 in
20321 allow udp from any 67 to me in
20322 allow udp from any 5353 to me in
20340 allow udp from any to any dst-port 137 in
20350 allow udp from any to any dst-port 427 in
20360 allow udp from any to any dst-port 631 in
20370 allow udp from any to any dst-port 5353 in
22000 allow udp from any to any dst-port 123 in
30510 allow udp from me to any out keep-state
30520 allow udp from any to any in frag
35000 deny udp from any to any in
65535 allow ip from any to any

ipfw list output in blocking TCP and UDP traffics and using stealth mode

02000 allow ip from any to any via lo*
02010 deny ip from 127.0.0.0/8 to any in
02020 deny ip from any to 127.0.0.0/8 in
02030 deny ip from 224.0.0.0/3 to any in
02040 deny tcp from any to 224.0.0.0/3 in
02050 allow tcp from any to any out
02060 allow tcp from any to any established
12190 deny tcp from any to any
20000 deny icmp from any to me in icmptypes 8
20310 allow udp from any to any dst-port 53 in
20320 allow udp from any to any dst-port 68 in
20321 allow udp from any 67 to me in
20322 allow udp from any 5353 to me in
20340 allow udp from any to any dst-port 137 in
20350 allow udp from any to any dst-port 427 in
20360 allow udp from any to any dst-port 631 in
20370 allow udp from any to any dst-port 5353 in
22000 allow udp from any to any dst-port 123 in
30510 allow udp from me to any out keep-state
30520 allow udp from any to any in frag
35000 deny udp from any to any in
65535 allow ip from any to any

ip6fw list output in enabling IPv6

ip6fw list output in enabling IPv6
